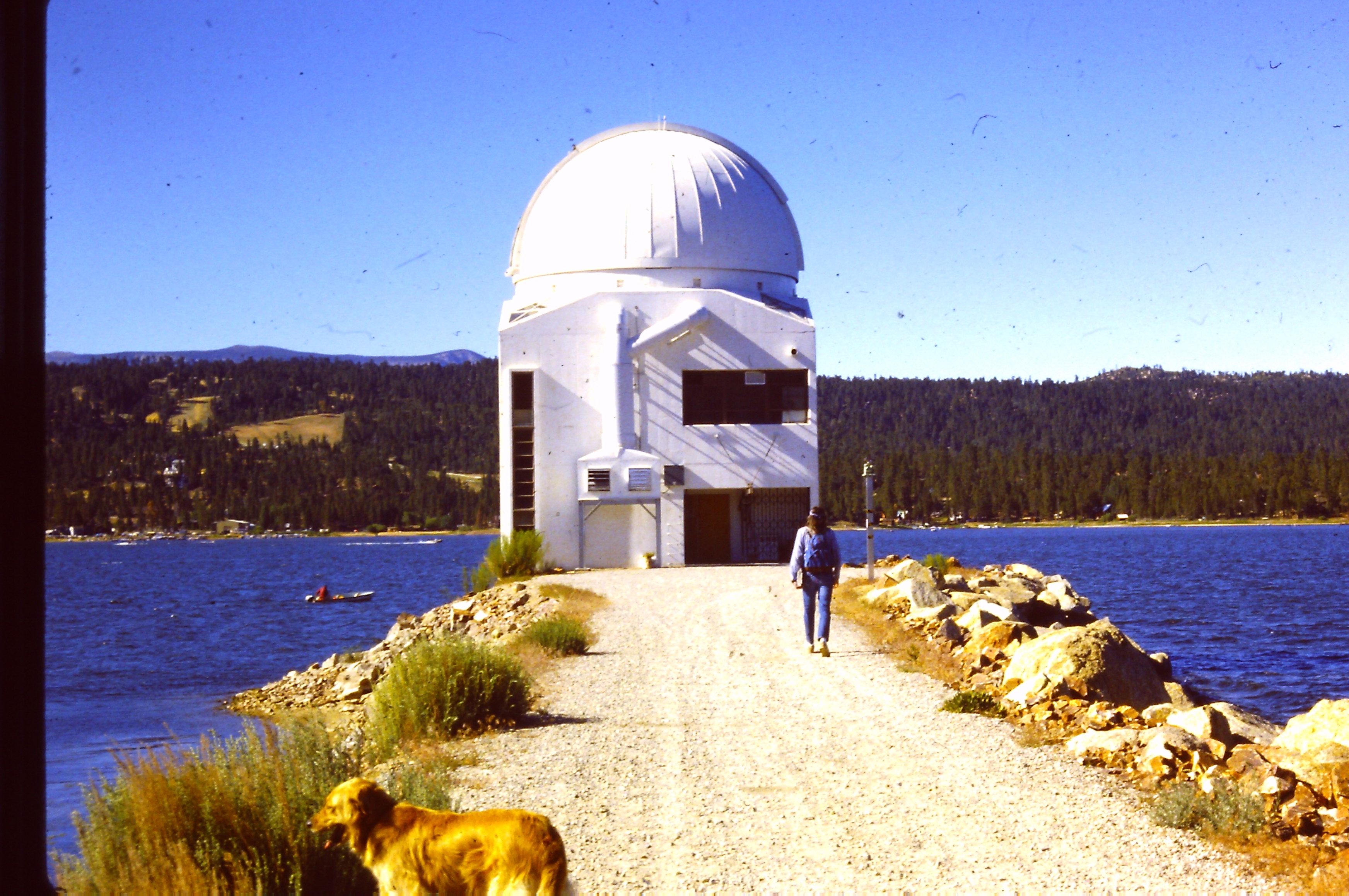

Causeway:
The Causeway in the early 1990s. Probably before the 1992
earthquake. The pole supports the GONG pyroheliometer.
Notice the external fan box. |
|

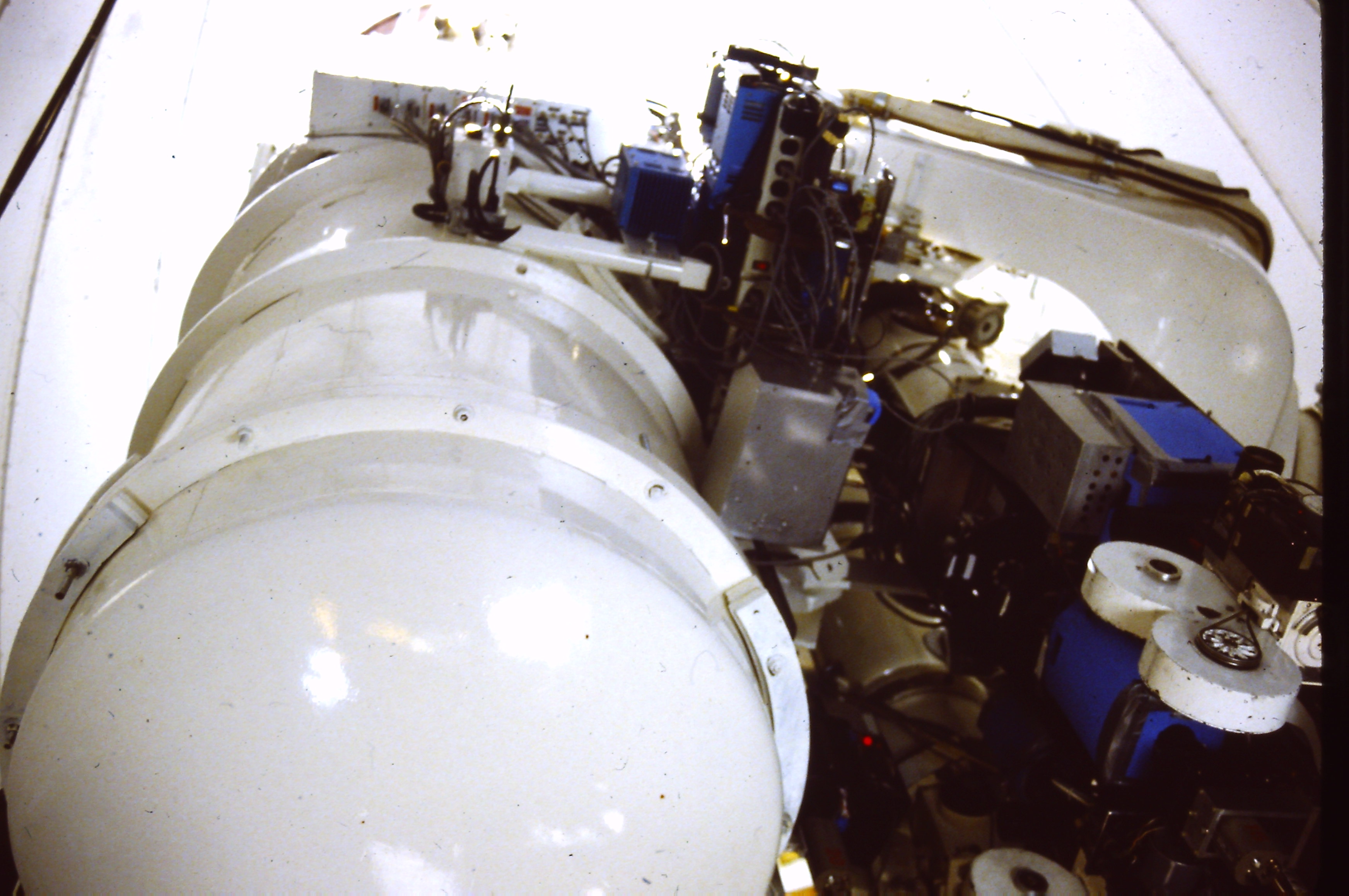

Front Part of Telescope Assembly:
This image shows the front part of the BBSO telescope assembly.
On the right is the 26 inch reflector, with a cooled ring in front
to shade the front of the vaccuum tank. Towards the rear of the tank
is one of the electronics patch boxes which allowed the different
Lyot filters to be used on any bench. |
|

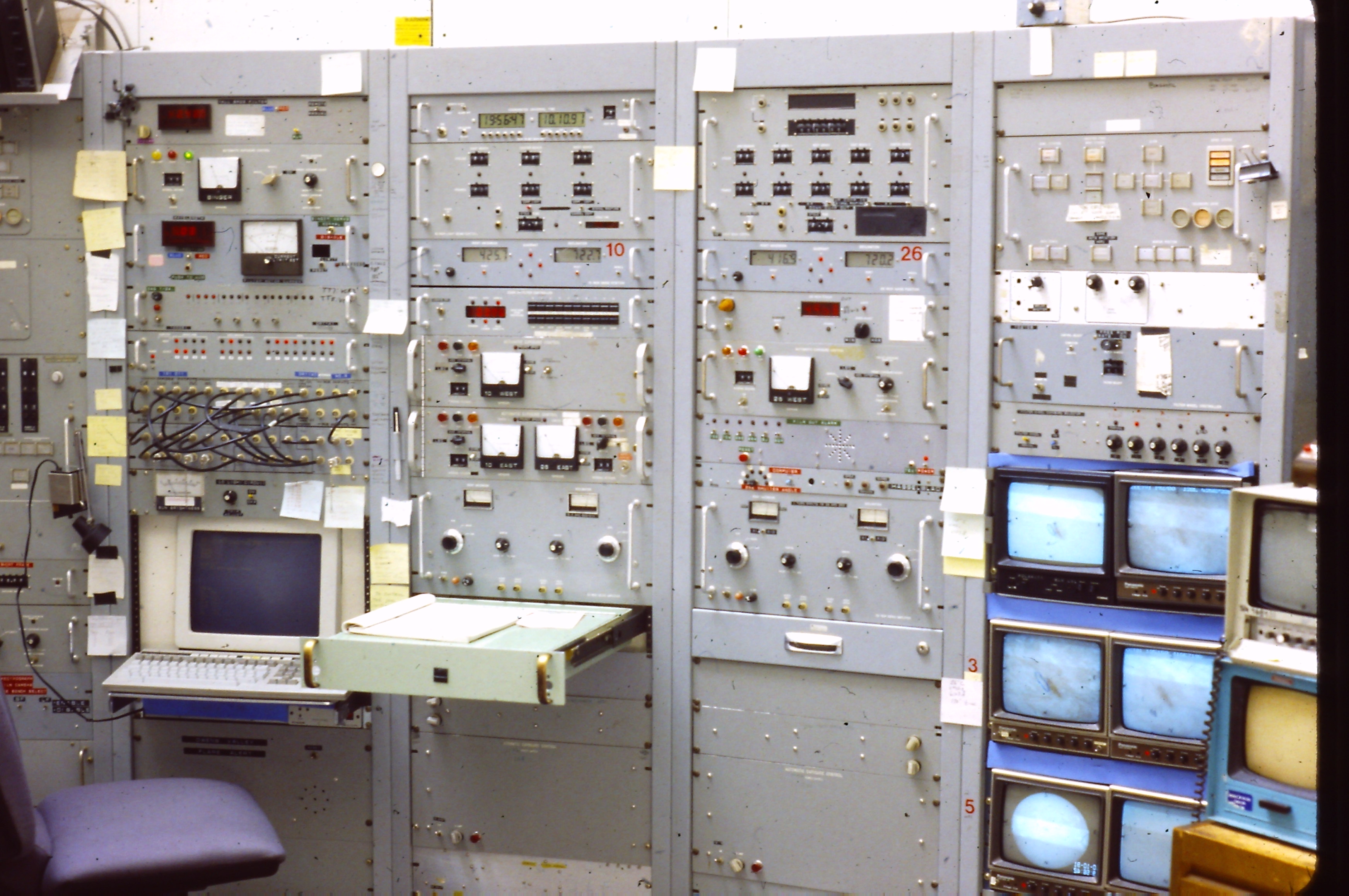

Telescope Control Panel:
This shows most of the telescope control panel as it was in 1991. |
|

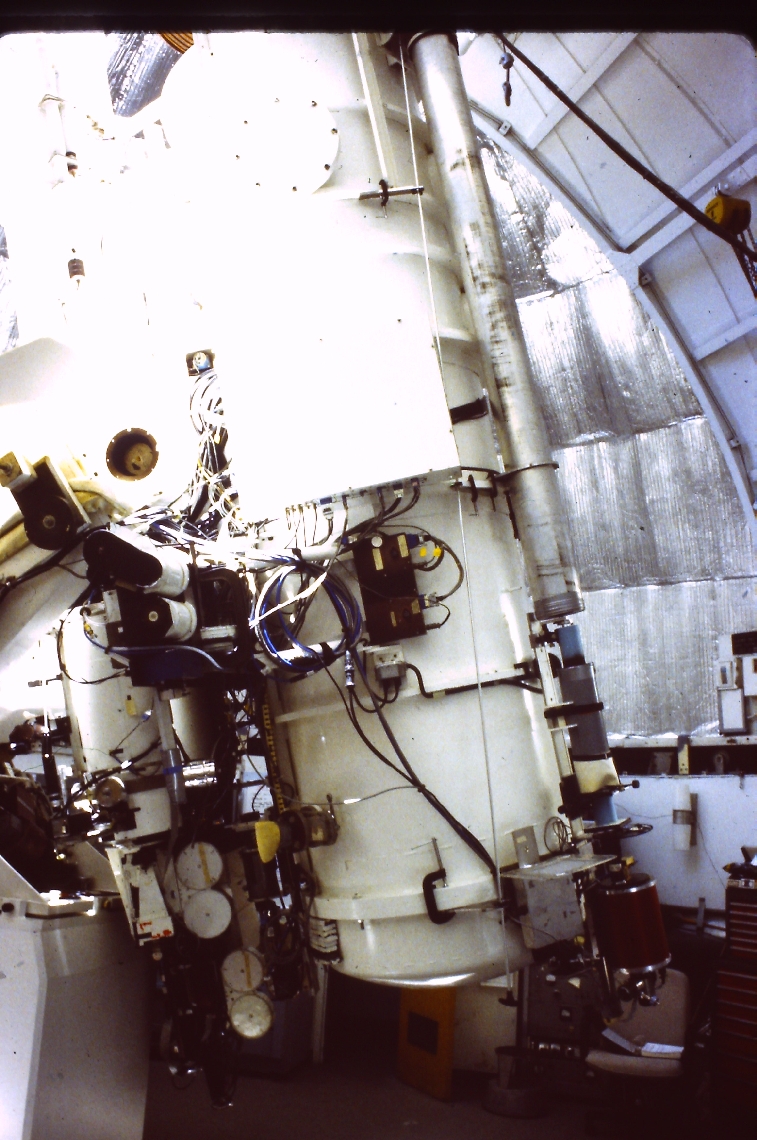

Rear of Telescope Assembly:
This image from before the 1992 earthquake shows the rear of
the telescope assembly. |
|

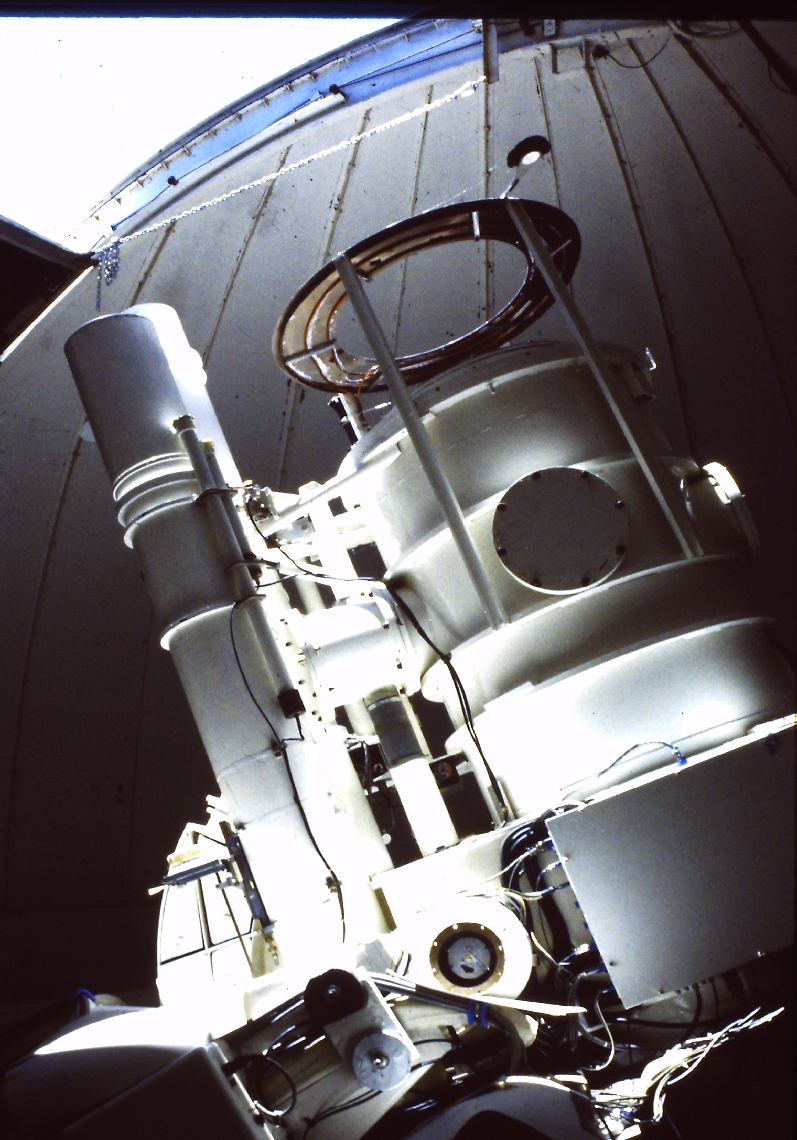

The West Side of the Telescope Assembly:
This image is looking up the west side of the telescope assembly. |
|
26 Inch Center Bench VMG Setup:
This image shows a setup of the VMG (videomagnetograph) on the
26 inch center bench. The video camera is to the left out of
the picture. |
|

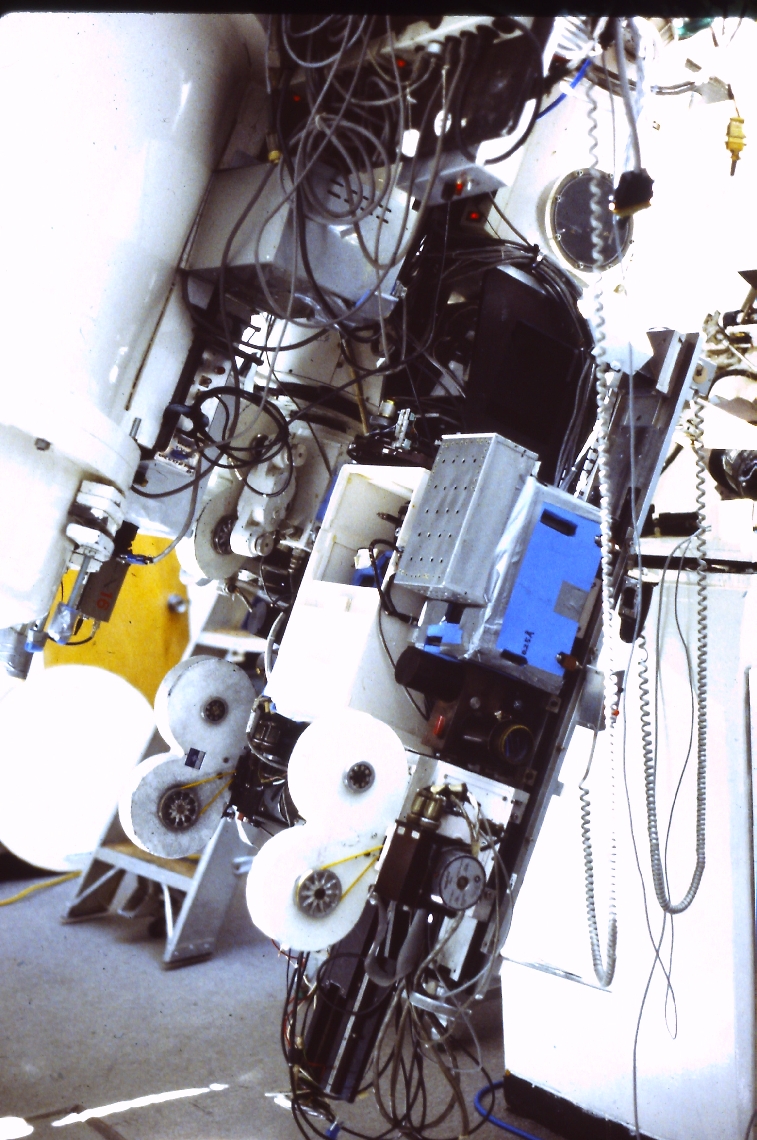

Typical 10 Inch Setup:
This shows a typical setup on the 10 inch telescope. The east
bench (to the left) has the Ca K filter, the center bench has
the VMG (videomagnetograph) and the west bench (on the right)
has the scanning Zeiss H-alpha filter. |
|

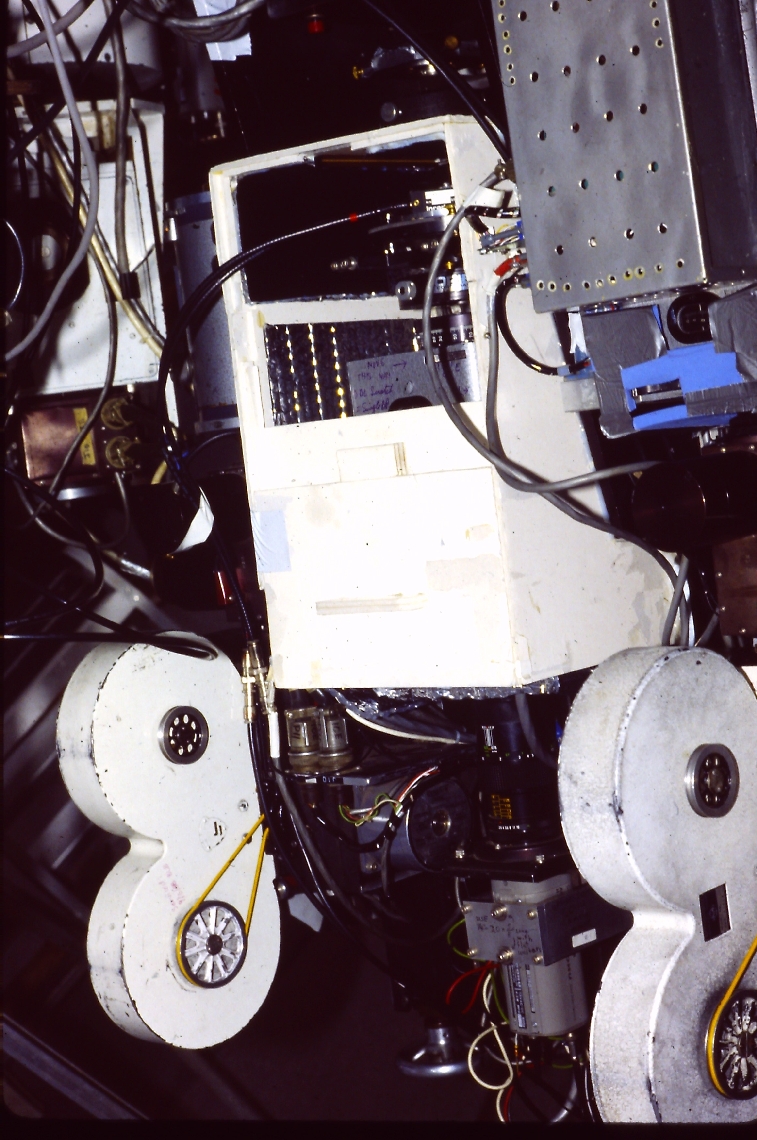

10 Inch VMG Setup:
This shows the setup of the VMG (videomagnetograph) on the
10 inch center bench. |
|
Rear of the Telescope Assembly:
This is a later image (probably 1993, definitly post-earthquake).
In this picture an early
version of the earthshine telescope is mounted on top of the
26 inch tank. This version is using the OSL CCD camera (the
big red tank at the back). |
